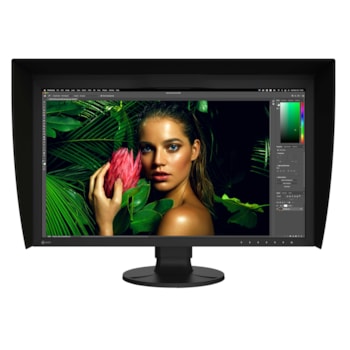

Monitor Eizo ColorEdge CG2700S (27") 2K

Eizo
Pedir cotação

PRINCIPAIS CARACTERÍSTICAS



Conexão simplificada

  • Ligação com um único cabo USB Type C
  • Entrega de energia
  • Ligação de rede estável



Gestão de cores fiável

  • Sensor incorporado para automatizar o seu fluxo de trabalho
  • Software de gestão de cores ColorNavigator 7
  • Software de gestão de cores da rede ColorNavigator

Precisão de cores

  • Cores vivas reproduzidas nos padrões da indústria
  • LUT 3D para exibição de cores precisas
  • Exibição simultânea de 10 bits
  • Predefinições para transmissão e cinema



Pós-produção

  • Ecrã preto verdadeiro
  • Suporte Gama HDR
  • Aviso de luminância
  • Aviso fora da gama BT.709
  • Configurações automáticas de cores



Visualização estável de imagens

  • Ajustado de fábrica para gradação de cores suaves
  • Cor estável em apenas 3 minutos
  • Exibição estável utilizando tecnologia AI pioneira no sector
  • Uniformidade no ecrã



Conforto e design

  • Design em metal perfurado



  • Diversas portas de ligação
  • Viseira de Proteção contra a Luz
  • Suporte ergonómico para melhor conforto e conveniência





Compromisso com a qualidade

  • Garantia de 5 anos do fabricante
  • Zero pixels brilhantes
  • Garantia de brilho e cor
  • Certificado para Qualidade e Desempenho
Panel
 Type IPS
 Backlight Wide-Gamut LED
 Size 27" / 68.5 cm
 Native Resolution 2560 x 1440 (16:9 aspect ratio)
 Viewable Image Size (H x V) 596.7 x 335.7 mm
 Pixel Pitch 0.233 x 0.233 mm
 Pixel Density 109ppi
 Display Colors 1.07 billion colors, 10-bit display (from a palette of 278 trillion, 16-bit LUT)
 Viewing Angles (H / V, typical) 178°, 178°
 Brightness (typical) 400 cd/m2
 Contrast Ratio (typical) 1600:1
 Response Time (typical) 19 ms (Gray-to-gray)
 Color Gamut (typical) Adobe RGB: 99%, DCI-P3: 98%
Video Signals
 Input Terminals USB Type-C (DisplayPort Alt Mode, HDCP 2.3), DisplayPort (HDCP 2.3), HDMI (Deep Color, HDCP 2.3)
 Digital Scanning Frequency (H / V) USB Type-C, DisplayPort: 26 - 89 kHz / 23 - 61 Hz
 HDMI: 15 - 89 kHz / 23 - 61 Hz
USB
 Upstream USB 3.1 Gen 1: Type-C (DisplayPort Alt Mode, Power Delivery Source 92 W max.), USB 3.1 Gen 1: Type-B
 Downstream USB 3.1 Gen 1: Type-A x 2
 USB 2.0: Type-A x 2
Power
 Power Requirements AC 100 - 240 V, 50 / 60 Hz
 Typical Power Consumption 17W
 Maximum Power Consumption 187W
 Power Save Mode 0.5W or less
 Built-in Calibration SensorYes
 Features & Functions
 Brightness Stabilization Yes
 Digital Uniformity Equalizer Yes
 Preset ModesUser, BT.2020, BT.709, DCI-P3, PQ_DCI-P3, HLG_BT.2100, AdobeRGB, sRGB, Calibration (CAL), SYNC_SIGNAL
 OSD Languages

 English, German, French, Italian, Japanese, Simplified Chinese,

 Spanish, Swedish, Traditional Chinese

 Others



Color Adjustment, PQ Option, HLG Option, SelfCalibration, Input Color Format, YUV Color Matrix, Input Range, I/P Conversion, Picture Expansion, BT.709 Gamut warning, Luminance Warning, Marker, Menu Rotation, Power Save, Input Skip, Mode Skip, Custom Key, Information Display, Key Lock, DUE Priority, Ethernet

Physical Specifications
 Dimensions (Landscape, W x H x D) 638 x 415.9 - 570.9 x 245 mm
 Dimensions (Without Stand, W x H x D) 638 x 390 x 86.2 mm
 Dimensions (Landscape with Hood, W x H x D) 648 x 420.9 - 575.9 x 346 mm
 Net Weight 9.4 kg
 Net Weight (Without Stand) 6.4 kg
 Net Weight (With Hood) 9.8 kg
 Height Adjustment Range 155 mm
 Tilt 35° Up, 5° Down
 Swivel 344°
 Pivot 90°
 Hole Spacing (VESA Standard) 100 x 100 mm
Environmental Requirements
 Operating Temperature 0 - 35 °C
 Operating Humidity (R.H., non condensing) 20 - 80 %
Certifications & Standards (Please contact EIZO for the latest information.)



CB, CE, UKCA, TUV/GS, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, RCM, EAC, RoHS, WEEE, TUV/Ergonomics, TUV/Color Accuracy (Quick Stability), FograCert Softproofing System (class A)

Dedicated Software
 Easy Screen-to-Print Color Matching Tool Quick Color Match Supported
Proprietary Software
 Color Mangement Software ColorNavigator 7 Supported
Supplied Accessories (May vary by country. Please contact EIZO for details.)
 Signal Cables USB Type-C (2 m), HDMI (2 m)
 Others



 AC power cord, USB Type-A - USB Type-B cable (2 m), Setup guide, Factory Report, ScreenCleaner, Monitor hood, Warranty card

Warranty Five Years 2 5
Zero bright sub-pixels for six months from date of purchase

  1. 2  With current LCD technology, a panel may contain a limited number of missing or flickering pixels.
  2. 5  If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.
